Para Aramid Thread
Color:
Original color and dyed
Specifications:
200d/3/2, 400d/3/2, 1000d/2/3, etc
Tube type:
Loose tube (170mm, 230mm), paper tube
Usage:
Sewing, Quilting
Material:
aramid fiber
Package:
cardboard box, other
Customization:
Specifications and packaging can be customized
Color:
Original color and dyed
Specifications:
200d/3/2, 400d/3/2, 1000d/2/3, etc
Tube type:
Loose tube (170mm, 230mm), paper tube
Usage:
Sewing, Quilting
Material:
aramid fiber
Package:
cardboard box, other
Customization:
Specifications and packaging can be customized
Available Winding Type
Available Winding Type

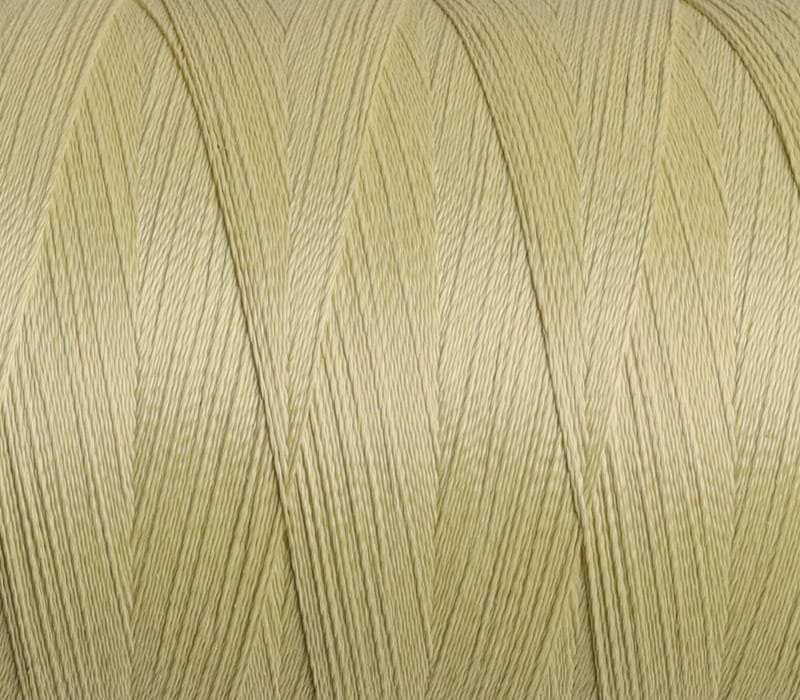

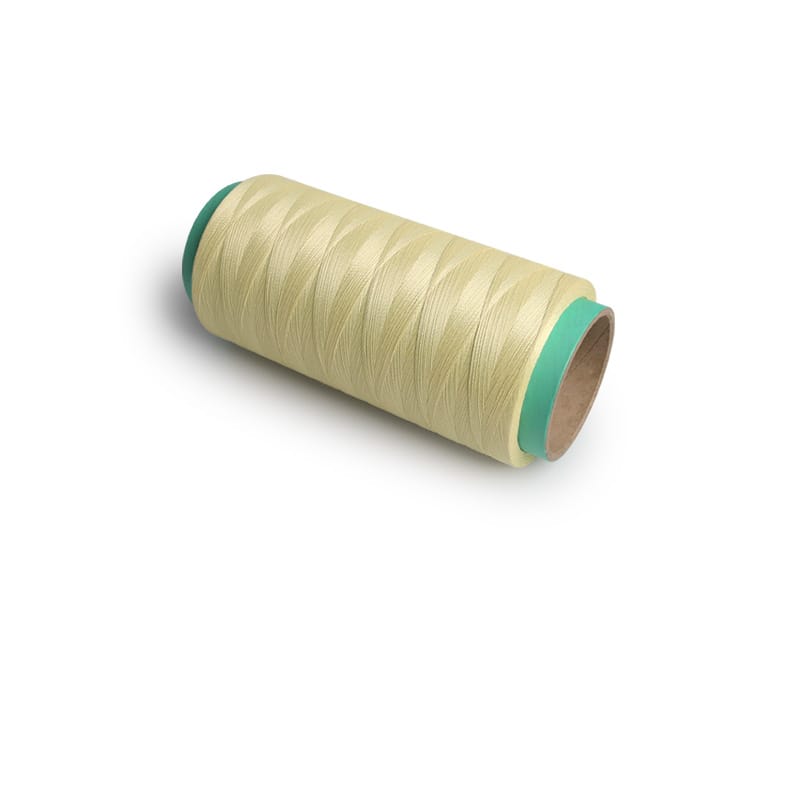

Para Aramid Thread
Para aramid filament thread is a special sewing thread made of 100% continuous aramid (commonly known as aramid 1414) filament. Its core value is to maintain high strength even under extreme high temperatures and to possess flame retardancy.
Core properties of para aramid filament thread
Heat resistance and flame retardancy: Continuous temperature resistance of about 170 ℃, decomposition temperature of about 425 ℃. Not self igniting or melting, able to extinguish the flame after it has withdrawn.
Strength and durability: Stronger than steel wires of the same thickness, wear-resistant, cutting resistant, and resistant to chemical corrosion.Even after aging for 30 minutes at a high temperature of 400 ℃, the strength can still be maintained.
Very sensitive to ultraviolet radiation, long-term exposure can cause discoloration and a decrease in strength, and is not recommended for use on surface lines that require long-term exposure.
Main Features
- Wear resistance
- Complexity
- High strength
- Ultimate strength
Application
Firefighting and protective clothing: Firefighter firefighting suits, industrial flame retardant fixtures (such as welding, casting).
Industrial filtration: used for sewing high-temperature flue gas filtration and dust removal bags, corrosion-resistant and high-temperature resistant.
Safety protective equipment: bulletproof vests, cut resistant gloves, stab resistant clothing, etc., utilizing their high strength and cutting resistance.
Outdoor and furniture: production of some high-end fireproof mattresses, tents, and high-temperature insulation curtains
T.D.S.
SPECIFICATION
TEANCITY
(cN/dtex)
50D/2
21
±3
＞25
3.50%
200D/2
20
±3
＞82
3.50%
200D/3
40
±3
＞125
3.50%
400D/2
60
±3
＞155
3.50%
400D/3
30
±3
＞230
3.50%
1000D/2
45
±3
＞450
3.50%
1000D/3
30
±3
＞680
3.50%
Table
Construction：1414 Para Aramid Thread
Ne：50D/2
Tenacity：21
Liner density：±3
Breaking strength：＞25
Elongation at break: 3.50%
Ne：200D/2
Tenacity：20
Liner density：±3
Breaking strength：＞82
Elongation at break: 3.50%
Ne：200D/3
Tenacity：20
Liner density：±3
Breaking strength：＞125
Elongation at break: 3.50%
Ne：400D/2
Tenacity：19
Liner density：±3
Breaking strength：＞155
Elongation at break: 3.50%
Ne：400D/3
Tenacity：19
Liner density：±3
Breaking strength：＞230
Elongation at break: 3.50%
Ne：1000D/2
Tenacity：18
Liner density：±3
Breaking strength：＞450
Elongation at break: 3.50%
Ne：1000D/3
Tenacity：18
Liner density：±3
Breaking strength：＞680
Elongation at break: 3.50%
