Para Aramid Thread

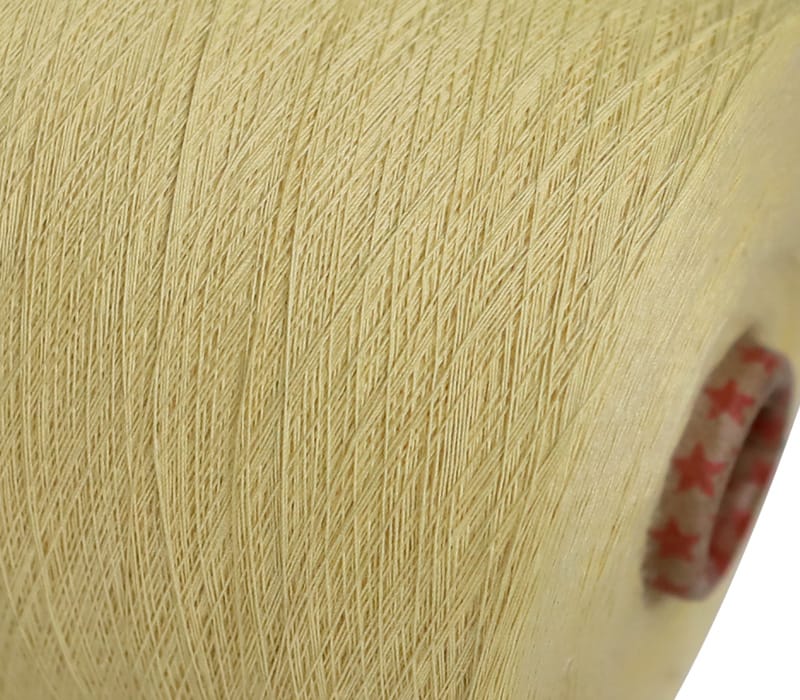

Close-up of pale yellow thread wound on a spool, with a small red-star patterned button visible on the edge.

Available Winding Type

卷绕 管型 -5
卷绕 管型 -7
卷绕 管型 -11
卷绕 管型 -16

What is para aramid thread?

Para Aramid thread is a high-performance sewing thread, spun from poly-p-phenylene terephthalamide (PPTA) short fibers. Renowned for its exceptional properties such as high strength, heat resistance, flame retardancy, abrasion resistance, and chemical stability. It is a specialized material designed to provide reliable stitching in extreme and harsh environments. The natural color is usually golden yellow, but it can also be customized to other colors such as black, blue, red, etc. according to needs.

Core Performance Features

High strength and high modulus: Its strength is 5 times that of steel wire of the same quality, and it has excellent resistance to cutting, tearing, and wear.

High temperature resistance and flame retardancy: Long term use temperature can reach 180 ℃, with a limit oxygen index (LOI) greater than 28. It is not easy to burn when exposed to fire and can self extinguish after leaving the flame without producing molten droplets.

Chemical stability: It has good resistance to weak acids, weak bases, and most organic solvents, and is suitable for various complex chemical environments.

If you want to learn more about 1414 para aramid thread, please contact us

Main Features

  • Flam retardant
  • Wear resistance
  • Complexity
  • Ultimate strength
Two firefighters in red turnout gear with helmets and air tanks move through a smoky, fiery scene.

Color:

Original color and dyed

Specifications:

20s/2 20s/3 30s/2 30s/3etc

Tube type:

Loose tube (170mm, 230mm), paper tube

Usage:

Sewing, Quilting

Material:

aramid fiber

Package:

cardboard box, other

Customization:

Specifications and packaging can be customized

1414 Para-Aramid Thread

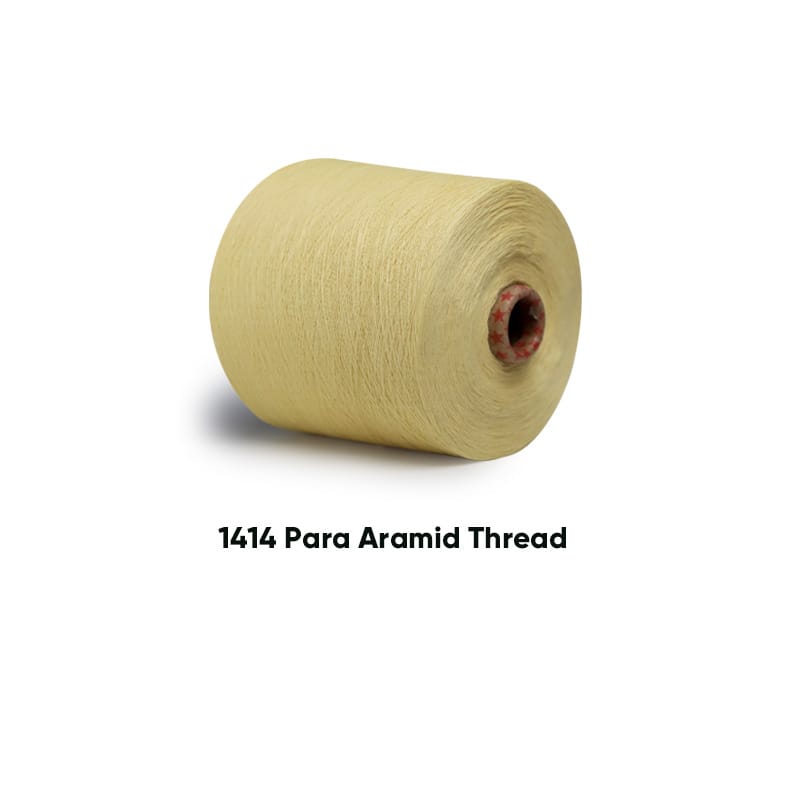

Roll of pale-yellow para-aramid thread on a red-core spool, labeled 1414 Para Aramid Thread (informational)

Color:

Original color and dyed

Specifications:

20s/2 20s/3 30s/2 30s/3etc

Tube type:

Loose tube (170mm, 230mm), paper tube

Usage:

Sewing, Quilting

Material:

aramid fiber

Package:

cardboard box, other

Customization:

Specifications and packaging can be customized

Available Winding Type

卷绕 管型 -5
卷绕 管型 -7
卷绕 管型 -11
卷绕 管型 -16

Application

Personal protection: firefighting suit, bulletproof vest, cut resistant gloves, welding apron.

Industrial filtration: sewing of high-temperature dust removal bags (used in cement plants, steel plants, and power plants), requiring the wire to be stable and not shrink at high temperatures.

Special products: aerospace equipment, high-temperature furnace insulation curtains, automotive airbags, Climbing ropes, seat belts, high-performance tents, racing suits, and cut resistant backpacks and other products.

Welding a metal frame while kneeling, sparks flying and the worker wearing protective gear including a helmet and gloves.

T.D.S.

SIZE

(S for Count)

TEX

(No.)

YIELD
(meters/kg)
AVERAGE STRENGTH
(cN)

20s/2

60

16660

3900

20s/3

90

11100

5850

30s/3

60

16660

3900

40s/2

30

33000

1950

40s/3

45

22200

2925

Table

Construction：1414 Para Aramid Thread

Size：20s/2

TEX：60

Yield：16660

Average Strength：3900

Size：20s/3

TEX：90

Yield：11100

Average Strength：5850

Size：30s/3

TEX：60

Yield：16660

Average Strength：3900

Size：40s/2

TEX：30

Yield：33000

Average Strength：1950

Size：40s/3

TEX：30

Yield：22200

Average Strength：2925
