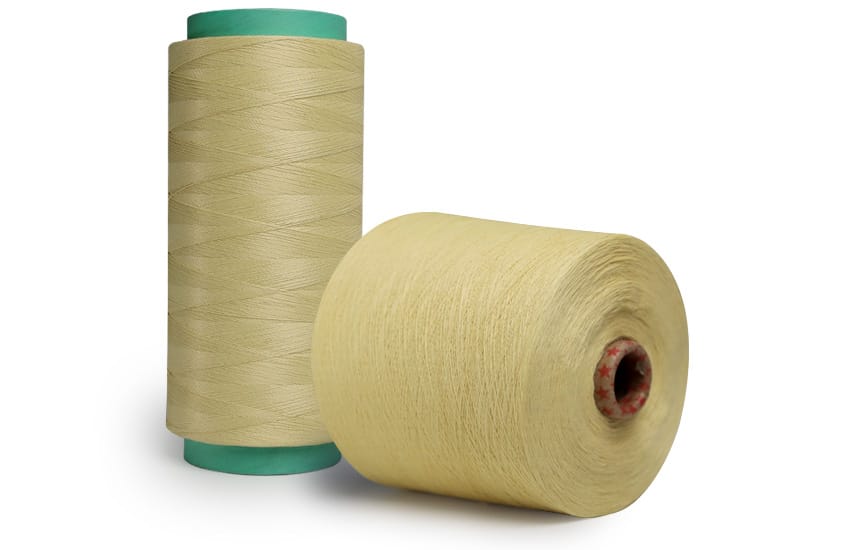

Para-Aramid 1414 Thread

Para-Aramid Thread

Sroduct Attributes

Color: Original color and dyed

Specifications: 200d/3/2, 400d/3/2, 1000d/2/3, etc

Tube type: Loose tube (170mm, 230mm)

Usage: Sewing, Quilting

Material: aramid fiber

Packaging: cardboard box, other

Customization: Specifications and packaging can be customized

Features

  • Wear resistance
  • Complexity
  • High strength
  • Ultimate strength
卷绕 管型 -2
卷绕 管型 -4
卷绕 管型 -6
卷绕 管型 -7
卷绕 管型 -10
卷绕 管型 -11
卷绕 管型 -14
卷绕 管型 -15
卷绕 管型 -17
Available
Unavailable

Product Structure

  • Chemical name: Polyphenylene terephthalamide.
  • The amide bond on its polymer molecular chain is connected to the para position (Para -) of the benzene ring.
  • This structure makes the molecular chains very straight and regular, capable of forming highly crystalline oriented structures. The molecular chains are tightly bound together through strong hydrogen bonds, like hard sticks. This gives it extremely high strength and modulus.

Product Performance

  • Ultra high strength, high modulus, impact resistance, lightweight.
  • Good heat resistance. Continuous use temperature is about 160 ° C-180 ° C, LOI is about 29, and it also has flame retardancy. But its high strength can be maintained at high temperatures.
  • The mechanical properties are extremely excellent. The specific strength (strength/density) is more than 5 times that of high-quality steel; The specific modulus is more than twice that of steel.
  • High thermal shrinkage performance. If not treated specially, there will be some shrinkage at high temperatures.

Main Application Areas

The choice of which one depends entirely on the performance combination required for the final product.

PARA-Aramid Filament Thread

1. Bulletproof core:

  • UD non-woven fabric for bulletproof vests and reinforcement layer for bulletproof helmets. The highest level of impact resistance is required, and filament is the only choice.

2. Fiber optic cable reinforcement:

  • As a reinforcement component (FRP) for optical fibers, it replaces bulky steel wires and provides high-strength, lightweight protection.

3. High strength rope cable:

  • Mooring ropes, towing ropes, climbing ropes. Require lightweight, high strength, and corrosion resistance.

4. Rubber reinforcement:

  • High performance tire cords, automotive hoses (such as brake hoses), and conveyor belts. Require high modulus and low creep.

5. Sports equipment:

  • Composite material skeleton for high-end tennis rackets, badminton rackets, and rowing boats.

PARA-Aramid Spun Polyester Thread

1. Cut resistant gloves:

  • This is the most typical application. The fuzz and softness of short fiber yarn enable it to be woven into comfortable gloves, and its excellent wear resistance and fiber to fiber friction effectively resist cutting by the blade.

2. Friction sealing material:

  • Used for manufacturing brake pads, clutch face plates, and gaskets. The adhesion between short fibers and resin matrix is good, which can enhance the material and improve heat resistance.

3. Protective clothing:

  • Used for manufacturing stab resistant clothing, arc resistant clothing, and industrial protective clothing that requires certain wear resistance. Short fiber yarn is more suitable for weaving into fabrics, providing better comfort when worn.

4. Specialty paper materials:

  • Aramid short fibers can be used to make paper like wood pulp, and are used to manufacture high-temperature resistant electrical insulation paper, battery separators, etc.

Main Application Areas

The choice of which one depends entirely on the performance combination required for the final product.

Para-Aramid Filament Thread

1. Bulletproof core:
  • UD non-woven fabric for bulletproof vests and reinforcement layer for bulletproof helmets. The highest level of impact resistance is required, and filament is the only choice.
2. Fiber optic cable reinforcement:
  • As a reinforcement component (FRP) for optical fibers, it replaces bulky steel wires and provides high-strength, lightweight protection.
3. High strength rope cable:
  • Mooring ropes, towing ropes, climbing ropes. Require lightweight, high strength, and corrosion resistance.
4. Rubber reinforcement:
  • High performance tire cords, automotive hoses (such as brake hoses), and conveyor belts. Require high modulus and low creep.
5. Sports equipment:
  • Composite material skeleton for high-end tennis rackets, badminton rackets, and rowing boats.

Para-Aramid Spun Thread

1. Cut resistant gloves:
  • This is the most typical application. The fuzz and softness of short fiber yarn enable it to be woven into comfortable gloves, and its excellent wear resistance and fiber to fiber friction effectively resist cutting by the blade.
2. Fiber optic cable reinforcement:
  • Used for manufacturing brake pads, clutch face plates, and gaskets. The adhesion between short fibers and resin matrix is good, which can enhance the material and improve heat resistance.
3. Protective clothing:
  • Used for manufacturing stab resistant clothing, arc resistant clothing, and industrial protective clothing that requires certain wear resistance. Short fiber yarn is more suitable for weaving into fabrics, providing better comfort when worn.
4. Specialty paper materials:
  • Aramid short fibers can be used to make paper like wood pulp, and are used to manufacture high-temperature resistant electrical insulation paper, battery separators, etc.
